PRODUCT RANGE

Search by Product Category

Category
Type
Size(mm)
Voltage
Bearing

Search by Product Category

Results :99 items , 10 pages

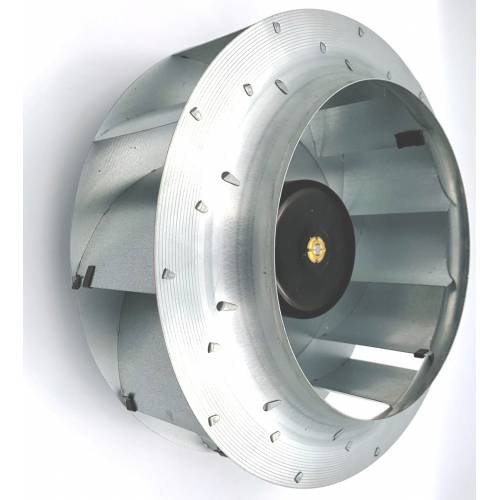

EC 310mm backward centrifugal fan

QV2310A0MBL-9A2


Maximum airflow最大風量: 1416 CFM
Maximum static pressure最大靜壓: 2.42 inAQ
Material材料:
Impeller扇葉: Aluminum alloy 鋁合金
Motor shell馬達殼: Diameter 直徑 92mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 7
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何

I have the interest Download PDF
no. Model bearing Rated Voltage (VCD) operating voltage range (VDC) Speed (RPM) Max. Airflow (CFM) Max. Static Pressure (mm-H2O) Current (mA) Life at 40°C L10 (Hour) Noise Level dB(A) Weight (g)
1 QV2310A0MBL-9A2 2B 230VAC 200~240VAC 1500 1416 61.47 1.25 50000 66 2835
EC 280mm backward centrifugal fan

QV228080MBL-9A2


Maximum airflow最大風量: 1322 CFM
Maximum static pressure最大靜壓: 2.49 inAQ
Material材料:
Impeller扇葉: Hot-dip galvanized sheet steel (SGCC) 熱浸鍍鋅鋼板
Motor shell馬達殼: Diameter 直徑 92mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 7
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何


I have the interest Download PDF
no. Model bearing Rated Voltage (VCD) operating voltage range (VDC) Speed (RPM) Max. Airflow (CFM) Max. Static Pressure (mm-H2O) Current (mA) Life at 40°C L10 (Hour) Noise Level dB(A) Weight (g)
1 QV228080MBL-9A2 2B 230VAC 200~240VAC 2100 1322 63.25 1.4 50000 71.5 2658

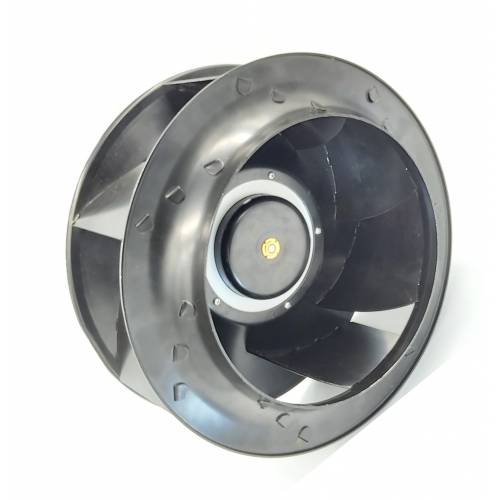

EC 250mm backward centrifugal fan

QV225057MBL-9A2


Maximum airflow最大風量: 901 CFM
Maximum static pressure最大靜壓: 2.45 inAQ
Material材料:
Impeller扇葉: Glass fiber-reinforced polypropylene玻纖強化聚丙烯
Motor shell馬達殼: Diameter 直徑 92mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 7
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何

I have the interest Download PDF
no. Model bearing Rated Voltage (VCD) operating voltage range (VDC) Speed (RPM) Max. Airflow (CFM) Max. Static Pressure (mm-H2O) Current (mA) Life at 40°C L10 (Hour) Noise Level dB(A) Weight (g)
1 QV225057MBL-9A2 2B 230VAC 200~240VAC 2500 901 62.23 1.35 50000 70.5 2000

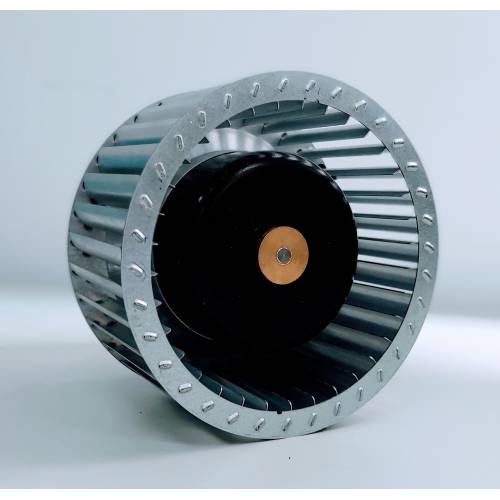

EC 180mm forward centrifugal fan

WV218092HBL-9A2


Maximum airflow最大風量: 616 CFM
Maximum static pressure最大靜壓: 3.2 inAQ
Material材料:
Impeller扇葉: Hot-dip galvanized sheet steel (SGCC) 熱浸鍍鋅鋼板
Motor shell馬達殼: Diameter 直徑 92mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 38
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何

I have the interest Download PDF
no. Model bearing Rated Voltage (VCD) operating voltage range (VDC) Speed (RPM) Max. Airflow (CFM) Max. Static Pressure (mm-H2O) Current (mA) Life at 40°C L10 (Hour) Noise Level dB(A) Weight (g)
1 WV218092HBL-9A2 2B 230VAC 200~240VAC 1200 616 81.28 1.55 50000 51.2 1900

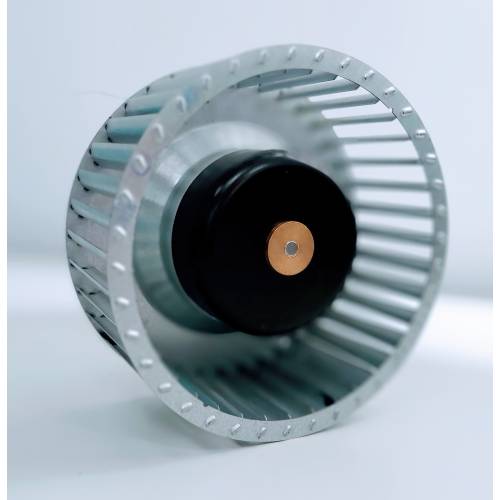

EC 160mm forward centrifugal fan

WV216062HBL-9A2


Maximum airflow最大風量: 405 CFM
Maximum static pressure最大靜壓: 3.74 inAQ
Material材料:
Impeller扇葉: Hot-dip galvanized sheet steel (SGCC) 熱浸鍍鋅鋼板
Motor shell馬達殼: Diameter 直徑 92mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 38
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何

I have the interest Download PDF
no. Model bearing Rated Voltage (VCD) operating voltage range (VDC) Speed (RPM) Max. Airflow (CFM) Max. Static Pressure (mm-H2O) Current (mA) Life at 40°C L10 (Hour) Noise Level dB(A) Weight (g)
1 WV216062HBL-9A2 2B 230VAC 200~240VAC 2150 405 95 1.74 50000 60.9 1820

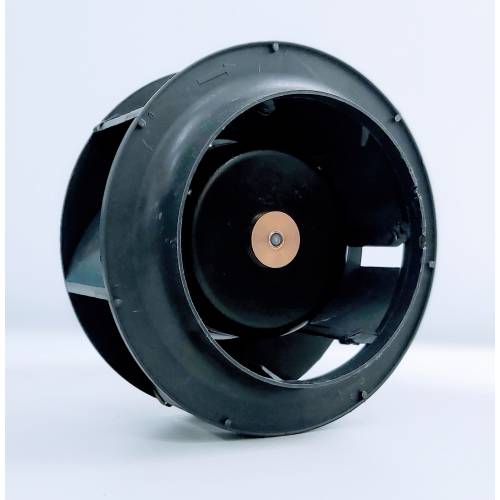

EC 225mm backward centrifugal fan

QV222563HBL-9A2


Maximum airflow最大風量: 849 CFM
Maximum static pressure最大靜壓: 3.47 inAQ
Material材料:
Impeller扇葉: Glass fiber-reinforced polypropylene玻纖強化聚丙烯
Motor shell馬達殼: Diameter 直徑 92mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 7
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何



I have the interest Download PDF
no. Model bearing Rated Voltage (VCD) operating voltage range (VDC) Speed (RPM) Max. Airflow (CFM) Max. Static Pressure (mm-H2O) Current (mA) Life at 40°C L10 (Hour) Noise Level dB(A) Weight (g)
1 QV222563HBL-9A2 2B 230VAC 200~240VAC 3100 849 88.14 0.67 50000 72.5 1925

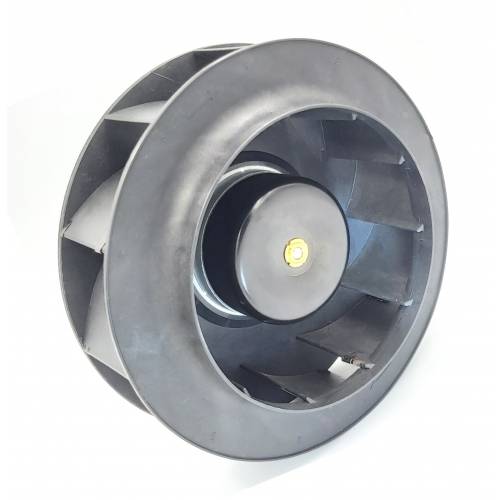

EC 225mm backward centrifugal fan

QV222563HBL-7A2


Maximum airflow最大風量: 566 CFM
Maximum static pressure最大靜壓: 2.17 inAQ
Material材料:
Impeller扇葉: Glass fiber-reinforced polypropylene玻纖強化聚丙烯
Motor shell馬達殼: Diameter 直徑 72mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 7
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何



I have the interest Download PDF
no. Model bearing Rated Voltage (VCD) operating voltage range (VDC) Speed (RPM) Max. Airflow (CFM) Max. Static Pressure (mm-H2O) Current (mA) Life at 40°C L10 (Hour) Noise Level dB(A) Weight (g)
1 QV222563HBL-7A2 2B 230VAC 200~240VAC 2500 566 55.12 0.67 50000 66.1 1450
EC 190mm backward centrifugal fan

QV219045HBL-7A2


Maximum airflow最大風量: 446 CFM
Maximum static pressure最大靜壓: 4.15 inAQ
Material材料:
Impeller扇葉: Glass fiber-reinforced polypropylene玻纖強化聚丙烯
Motor shell馬達殼: Diameter 直徑 72mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 7
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何

I have the interest Download PDF
no. Model bearing Rated Voltage (VCD) operating voltage range (VDC) Speed (RPM) Max. Airflow (CFM) Max. Static Pressure (mm-H2O) Current (mA) Life at 40°C L10 (Hour) Noise Level dB(A) Weight (g)
1 QV219045HBL-7A2 2B 230VAC 200~240VAC 3770 446 105.41 0.91 50000 72.3 1268
EC 175mm backward centrifugal fan

QV217542HBL-7A2


Maximum airflow最大風量: 458 CFM
Maximum static pressure最大靜壓: 3.54 inAQ
Material材料:
Impeller扇葉: Glass fiber-reinforced polypropylene玻纖強化聚丙烯
Motor shell馬達殼: Diameter 直徑 72mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 7
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何



I have the interest Download PDF
no. Model bearing Rated Voltage (VCD) operating voltage range (VDC) Speed (RPM) Max. Airflow (CFM) Max. Static Pressure (mm-H2O) Current (mA) Life at 40°C L10 (Hour) Noise Level dB(A) Weight (g)
1 QV217542HBL-7A2 2B 230VAC 200~240VAC 4640 458 779 0.95 50000 75.2 1218
EC 133mm backward centrifugal fan

QV213341HBL-7A2


Maximum airflow最大風量: 289 CFM
Maximum static pressure最大靜壓: 3.84 inAQ
Material材料:
Impeller扇葉: Glass fiber-reinforced polypropylene玻纖強化聚丙烯
Motor shell馬達殼: Diameter 直徑 72mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 7
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何

I have the interest Download PDF
no. Model bearing Rated Voltage (VCD) operating voltage range (VDC) Speed (RPM) Max. Airflow (CFM) Max. Static Pressure (mm-H2O) Current (mA) Life at 40°C L10 (Hour) Noise Level dB(A) Weight (g)
1 QV213341HBL-7A2 2B 230VAC 200~240VAC 6040 289 97.53 0.95 50000 74.3 1150
